driver samples for liquid nitrogen (LN2) micro dosing system

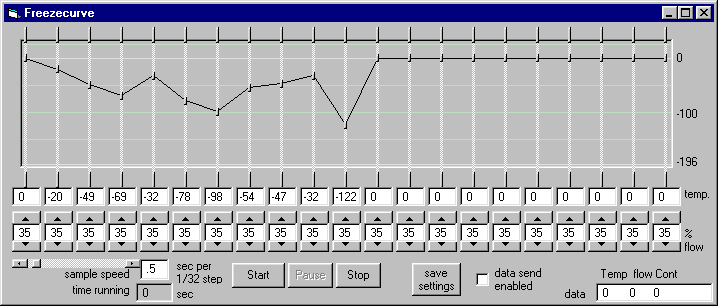

freezecurve screen

this is the screen of the freezecurve sample program.

by adjusting the various grip-points on the graph you can adjust the curve to your liking. You drag the points on the screen of your PC to where you want them or you type in the required temperature under each point.

Note that each section has it's own time setting.

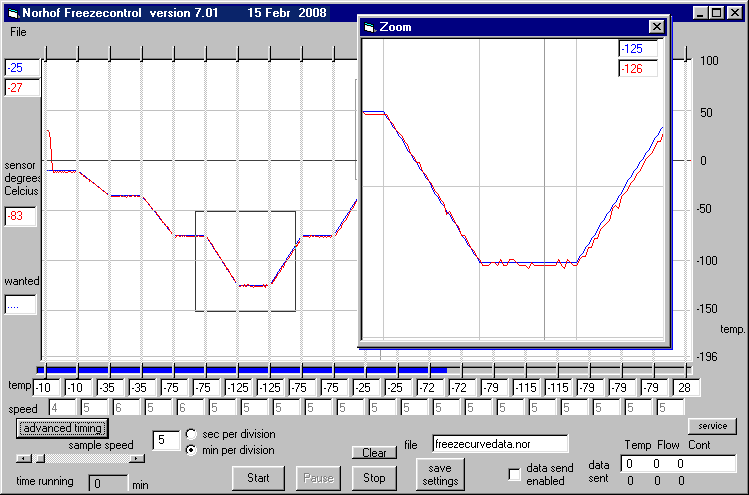

curve screen

by "pulling" each point to the required temperature (or type in the temperature directly) you can make any curve you want

please remember that this is only an example for your equipment designer, it is not a finished software product

ofcourse we will be pleased to assist you whenever necessary

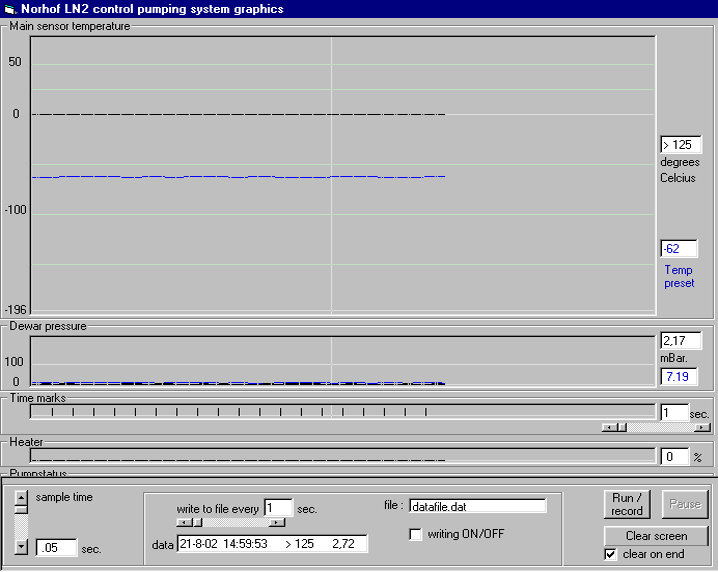

system graphics

as you can see a host of system information can be displayed in a very readable form, again this is just an example

With each #915 system 2 application drivers are included. When you are familiar with Visual Basic 6.0 you simply look how our programs are written and use these as a guide for writing your own application driver.
